XHYY102

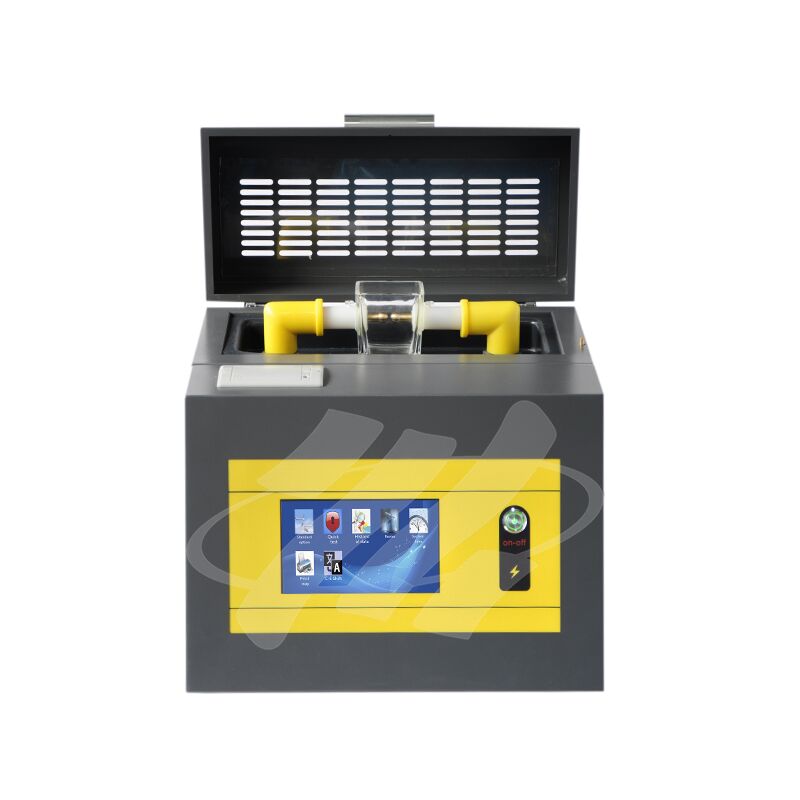

Introducing the XHYY102M Insulating Oil Breakdown Voltage Tester — a high-accuracy, fully digital industrial instrument crafted by our elite R&D and technical team. Engineered to meet all relevant insulating oil testing standards and regulations, it is the fruit of our proprietary technical advantages, repeated field verification, and persistent innovation efforts. Boasting intuitive operation and sleek aesthetics, this tester integrates automatic digital microcomputer control, delivering superior measurement precision, robust anti-interference performance, and dependable safety for all your testing needs.
Technical data
1. Booster capacity 1.5 KVA
2. Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optionalError 0.2kv/s
3. Output voltage 0-80 kV (optional)
4. Voltage accuracy (2% reading + 2 words)
5. Power distortion rate < 1%
6. Electrode gap standard 2.5mm
7. Test times 6 times (1-9 times optional)
8. Static release time 900S(0-9999S optional)
9. Interval rest time 300S(0-999S optional)
10. Mixing time 15S(0-999Soptional)
11. Overall dimension: 410mm × 380mm × 370mm
Conditions of use
1. Ambient temperature 0-40 ℃
2. Relative humidity ≤ 85%
3. Working power AC 220V (1 ± 10%)
4. Power frequency 50 Hz (1 ± 10%)
5. Power consumption < 200 W
