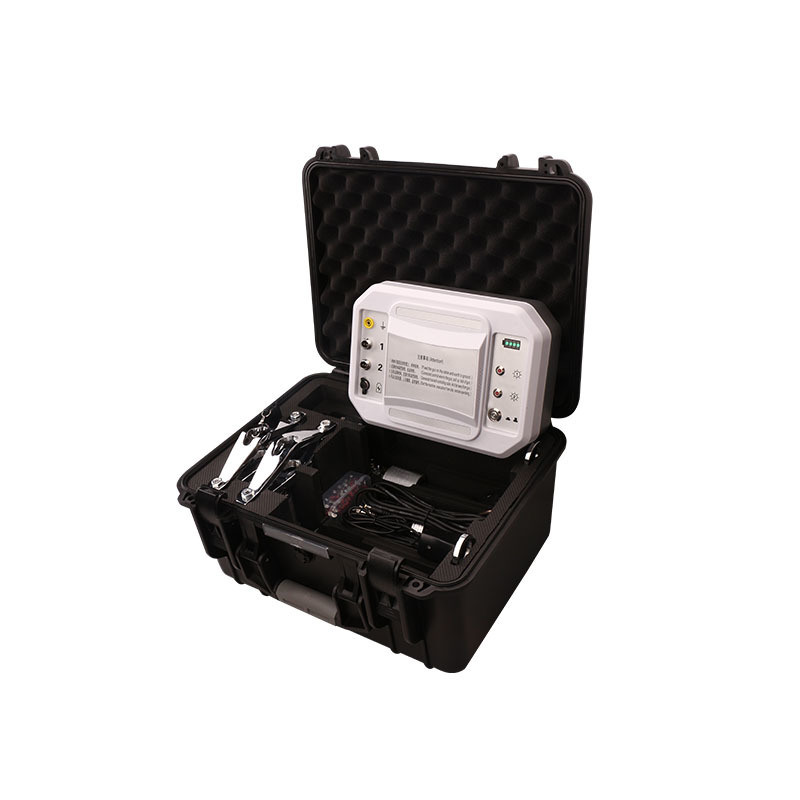

Remote Control Operation of Safe and Reliable Cable Fault Piercing Device

Name: Remote Control Operation of Safe and Reliable Cable Fault Piercing Device
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506S
Price: 1,050.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	XZH Test
Certificação:	CE/ISO
Número do modelo:	XHZS506S

Informações detalhadas

Lugar de origem:

CHINA

Marca:

XZH Test

Certificação:

CE/ISO

Número do modelo:

XHZS506S

Destacar:

High Light

Destacar:

remote control cable fault piercing device

safe cable fault locator

reliable cable piercing tool

Trading Information

Quantidade de ordem mínima:

1Unit

Detalhes da embalagem:

Caixa de madeira

Tempo de entrega:

5-8 dias de trabalho

Habilidade da fonte:

2000 unidade/ano

Descrição do produto

XHZS506S Cable Spiker

Basic Info.

Model NO.

XHZS506S

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Transport Package

Exported Wooden Case

Specification

470*380*210 (mm)

Trademark

XZH TEST

Origin

China

Production Capacity

2000PCS/Year

Product Description

Every year in the power system, human life accidents occur due to the manual sawing of wrong live cables. This device can completely solve the problem. It employs a remote-controlled automatic piercing device to puncture and damage the relevant cables on the spot. If the cable is electrified, it will explode upon puncture; otherwise, it will not be electrified.

In the process of power cable construction, especially when migrating and repairing laid cables, it is often necessary to saw off the relevant cables. To ensure the operator's personal safety, the first step is to identify the cables on site and determine whether they are live. Only after confirmation can the cables be sawed off.

There are typically two methods to confirm the identity of the relevant cables on site. One is through the original design and construction records, which can help locate the cables. The other, and more reliable, method is to use mechanical puncture to short-circuit the cable to the ground or to another phase. This is usually done through remote-controlled automatic puncturing.

After the cable is identified, before sawing, it is a special instrument for further destructive judgment of the cable
after the cable is identified. 100% confirm whether the cable is live, absolutely guarantee the personal safety of the staff.

1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of piercing and form a short circuit point;
2. It is controlled by wired + wireless remote control, and it can be remote controlled through the wall;
3. AC and DC dual-use, built-in lithium battery pack and large-capacity energy storage device, long charging time;
4. Small size and light weight, very suitable for field use.

Shooter	2 gun bodies
Remote control distance	More than 10 meters, you can remote control through the wall
Control line length	5 meters
Fixture diameter	φ30-150mm
Working power	Charging AC 220V/50Hz, the built-in battery works continuously for more than 10 hours
Controller	270×230×120mm 2.5kg
Whole set	470×380×210mm 15.5kg (dual gun 506S)

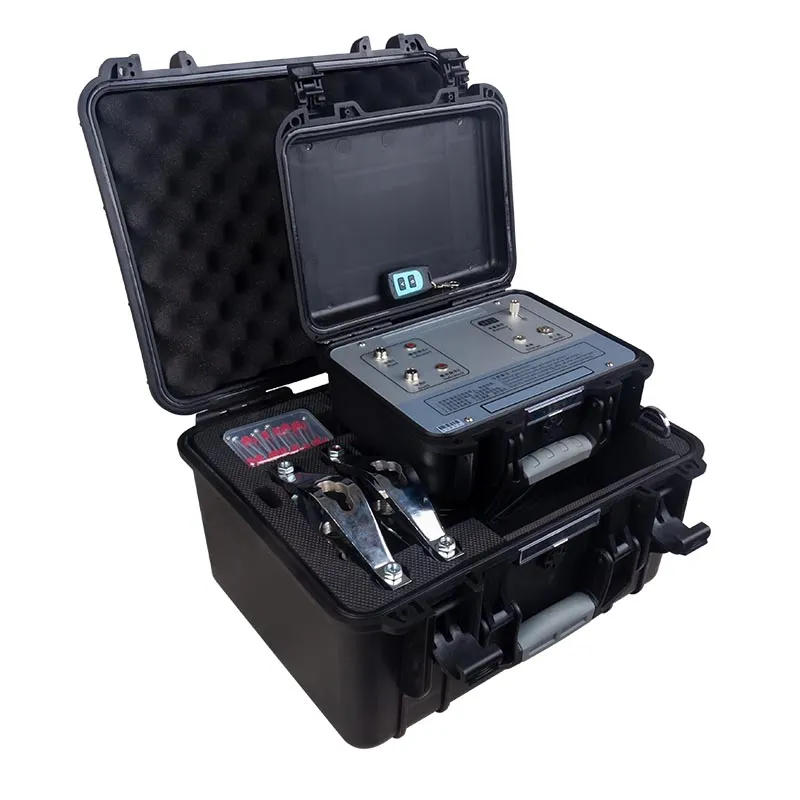

Remote Control Operation of Safe and Reliable Cable Fault Piercing Device 0

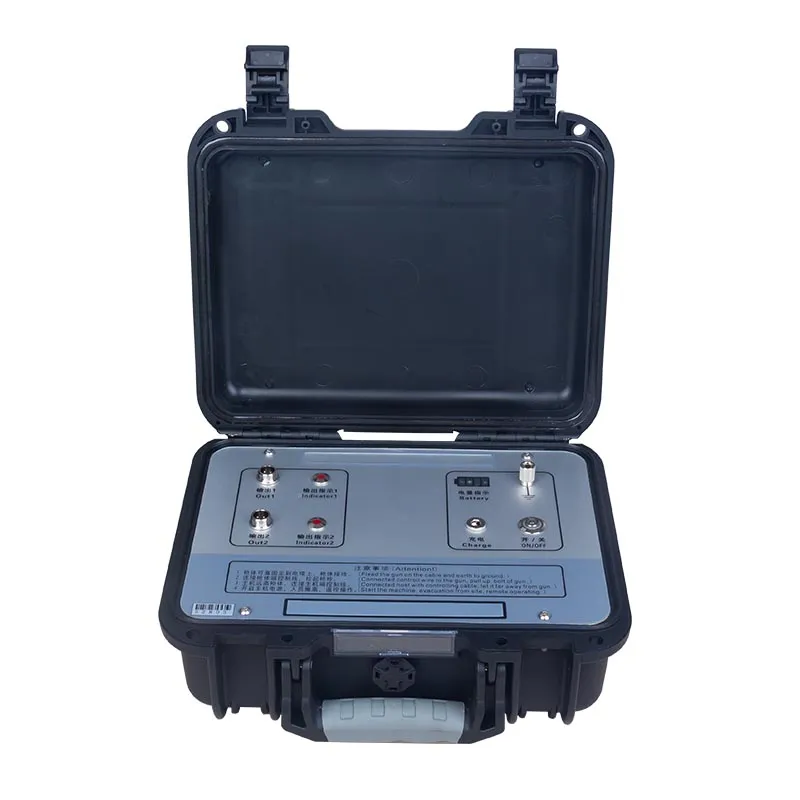

Remote Control Operation of Safe and Reliable Cable Fault Piercing Device 1
