AC and DC Dual-Purpose Cable Fault Locating Cable Fault Tying Device

Name: AC and DC Dual-Purpose Cable Fault Locating Cable Fault Tying Device
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506YS
Price: 1,050.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	XZH Test
Certificação:	CE/ISO
Número do modelo:	XHZS506YS

Informações detalhadas

Lugar de origem:

CHINA

Marca:

XZH Test

Certificação:

CE/ISO

Número do modelo:

XHZS506YS

Destacar:

High Light

Destacar:

AC DC cable fault locator

dual-purpose cable tying device

cable fault detector with warranty

Trading Information

Quantidade de ordem mínima:

1Unit

Detalhes da embalagem:

Caixa de madeira

Tempo de entrega:

5-8 dias de trabalho

Termos de pagamento:

T/T.

Habilidade da fonte:

2000 unidade/ano

Descrição do produto

XHZS506YS

Model NO.

XHZS506YS

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Product Name

Cable Puncture Device

Customized Support

OEM, ODM

Power Supply

Rechargeable Battery

Controller Weight

2.5 Kg

Whole Set

470 * 380 * 210 (mm)

Transport Package

Wooden Box with Foam Inside

Trademark

XZH TEST

Origin

China Xi&an

Production Capacity

1000

Product Description

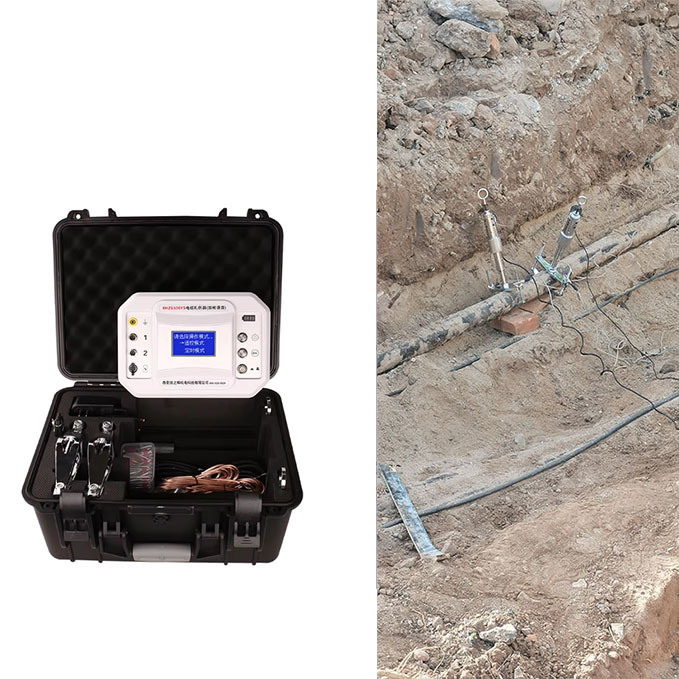

The cable piercing device is divided into two parts: the shooter and the controller: the shooter of the cable piercing device is a low-speed piston type special device designed for piercing cables. Its structure is reasonable and lightweight, and it is extremely convenient to install and fix. Can be installed at any angle. The controller of the cable tying device uses advanced electronic detection circuits. The cable tying device can remotely fire a nail at the cable, causing a short circuit in the cable. If the cable is charged, it will fire and discharge. If it is not powered, it means the cable has been powered off.

Features:

1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;
2. Use wired + wireless remote control method to control, and can be remotely controlled through the wall;
3. Both AC and DC, built-in lithium battery pack and large-capacity energy storage device, long charging time;
5. Small size and light weight, very suitable for outdoor use.

Technical Parameters

Shooting device	2 gun bodies;
Remote control distance	greater than 10 meters, can be remote controlled across the wall;
Control line length	5 meters;
Clamp diameter	φ30-150mm;
Working power supply	charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours;
Controller	270×230×120mm 2.5kg;
Complete set	470×380×210mm 15.5kg (double gun 506Y).

Nail specification table:Nail specification table:

Cable diameter mm	30	40	50	60	70	80	90	100
Nail specifications	PS27C8		PS37C8		PS47C8		PS52C8

Bullet power table:

Specification	black	blue	yellow	red	Recommended Use	35kV and below	35kV and above
Power	smallest	Small	middle	big	Recommended Use	Use S1 yellow	Use S1 red (6.8*11mm)

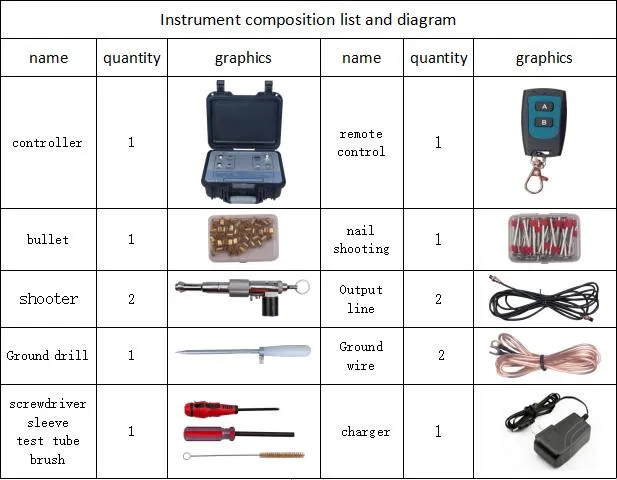

Standard configuration: 50 rounds of S1 red (power level 5) bullets, 50 rounds of PS57C8 nails
