Factory Cable Spiker Double Shooter Cable Spiking Tool Cable Fault Locator

Name: Factory Cable Spiker Double Shooter Cable Spiking Tool Cable Fault Locator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506YS
Price: 1,050.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	XZH Test
Certificação:	CE/ISO
Número do modelo:	XHZS506YS

Informações detalhadas

Lugar de origem:

CHINA

Marca:

XZH Test

Certificação:

CE/ISO

Número do modelo:

XHZS506YS

Destacar:

High Light

Destacar:

double shooter cable spiking tool

cable fault locator with warranty

factory cable spiker tool

Trading Information

Quantidade de ordem mínima:

1Unit

Detalhes da embalagem:

Caixa de madeira

Tempo de entrega:

5-8 dias de trabalho

Termos de pagamento:

T/T.

Habilidade da fonte:

2000 unidade/ano

Descrição do produto

XHZS506YS

Model NO.

XHZS506YS

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Product Name

Cable Puncture Device

Customized Support

OEM, ODM

Power Supply

Rechargeable Battery

Controller Weight

2.5 Kg

Whole Set

470 * 380 * 210 (mm)

Transport Package

Wooden Box with Foam Inside

Trademark

XZH TEST

Origin

China Xi&an

Production Capacity

1000

Product Description

Step-by-Step Instructional Expression:

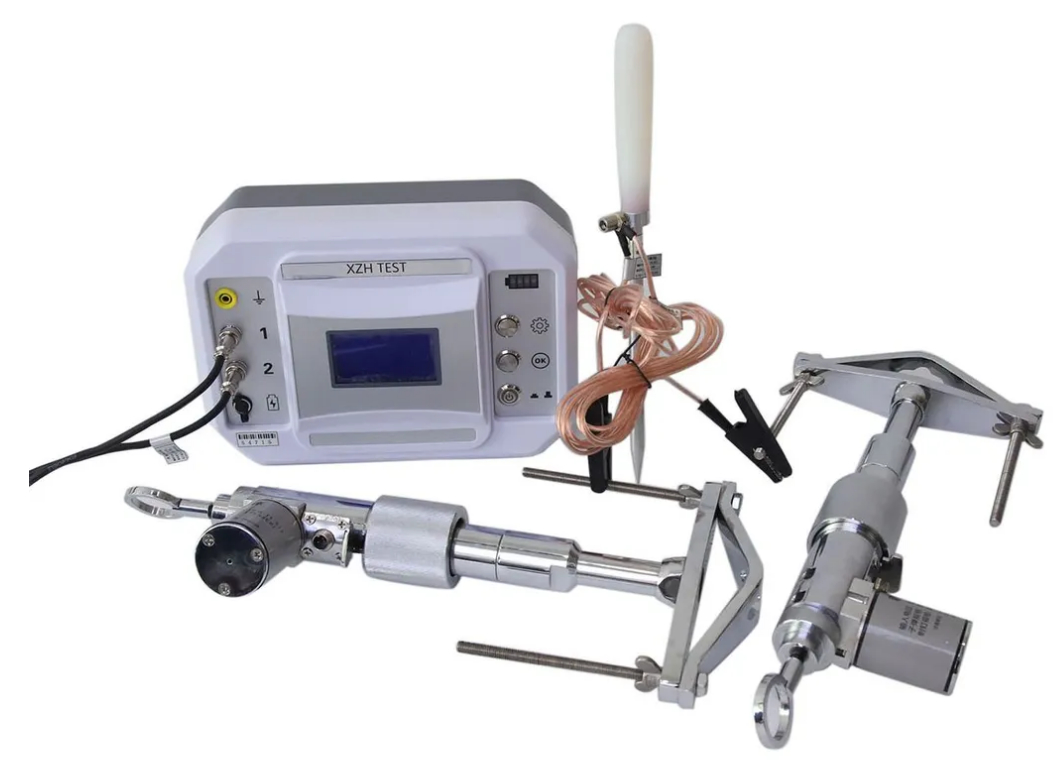

- First of all, get to know the two parts of the cable piercing device: the shooter and the controller.
- The shooter, designed in a low-speed piston type specifically for piercing cables, is lightweight and easy to install. Fixing it at various angles is a piece of cake.
- The controller is equipped with electronic detection circuits and can remotely control the shooter to fire nails.
- When in use, the shooter fires a nail to penetrate the cable. If the cable is charged, it will short-circuit and discharge. If there is no electricity, the cable has been de-energized and is safe to operate.

Features:

1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;
2. Use wired + wireless remote control method to control, and can be remotely controlled through the wall;
3. Both AC and DC, built-in lithium battery pack and large-capacity energy storage device, long charging time;
5. Small size and light weight, very suitable for outdoor use.

Technical Parameters

Shooting device	2 gun bodies;
Remote control distance	greater than 10 meters, can be remote controlled across the wall;
Control line length	5 meters;
Clamp diameter	φ30-150mm;
Working power supply	charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours;
Controller	270×230×120mm 2.5kg;
Complete set	470×380×210mm 15.5kg (double gun 506Y).

Nail specification table:Nail specification table:

Cable diameter mm	30	40	50	60	70	80	90	100
Nail specifications	PS27C8		PS37C8		PS47C8		PS52C8

Bullet power table:

Specification	black	blue	yellow	red	Recommended Use	35kV and below	35kV and above
Power	smallest	Small	middle	big	Recommended Use	Use S1 yellow	Use S1 red (6.8*11mm)

Standard configuration: 50 rounds of S1 red (power level 5) bullets, 50 rounds of PS57C8 nails

Factory Cable Spiker Double Shooter Cable Spiking Tool Cable Fault Locator 0
