0-15kv High Voltage Pulse Generator with 900j Power

Name: 0-15kv High Voltage Pulse Generator with 900j Power
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV515-8L
Price: 1,050.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	China
Marca:	XZH Test
Certificação:	CE/ISO
Número do modelo:	XHHV515-8L

Informações detalhadas

Lugar de origem:

China

Marca:

XZH Test

Certificação:

CE/ISO

Número do modelo:

XHHV515-8L

Destacar:

High Light

Destacar:

15kv high voltage pulse generator

900j power pulse generator

cable fault locator with warranty

Trading Information

Quantidade de ordem mínima:

1Unit

Detalhes da embalagem:

Caixa de madeira

Tempo de entrega:

5-8 dias de trabalho

Termos de pagamento:

T/T.

Habilidade da fonte:

2000 unidade/ano

Descrição do produto

XHHV515-8L

Model NO.

XHHV515-8L

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Impact Voltage

0~15kv

High Voltage Partial Pressure

2.5

Built-in Capacitor

8μf

Discharge Power

0~900j

Output Voltage Polarity

Negative Polarity

Impact Power

400W

Overcurrent Protection

10A (More Than 3 Seconds)

Over-Temperature Protection

65ºC

Transport Package

Wooden Box with Foam Inside

Specification

540L× 300W× 450H

Trademark

XZH TEST

Origin

China Xi&an

Production Capacity

1000

Product Description

This device integrates a DC high-voltage source, energy storage capacitor, discharge ball gap, etc. It completely replaces the traditional test transformer, operating box and pulse energy storage capacitor weighing hundreds of kilograms.

Features
★ With automatic protection for overcurrent, overvoltage, and overheating;
★ High voltage pulse output is uniform and controllable;
★ Super short-circuit protection enables direct grounding of high-voltage output;
★ Dual 2.5-level pointer displays for current and voltage, offering clear monitoring of the discharge process;
★ Real-time and accurate measurement of high-voltage side voltage;
★ Features zero-start protection and potentiometer zero-return output function for safety and reliability;
★ Unique high-voltage measurement design allows real-time capacitor voltage monitoring during stopped state;
★ Discharge time adjustable within an appropriate interval.

Technical Parameters

Impact voltage	0~15kV
High voltage partial pressure	Level 2.5
Built-in capacitor	8μF
Discharge power	0~900J
Output voltage polarity	negative polarity
Impact power	400W
Overcurrent protection	10A (more than 3 seconds)
Over-temperature protection	65ºC
Volume	540L×300W×450H
Weight	no more than 25kg
Working power supply	AC 220V±10%/50Hz±2Hz
Ambient temperature	-20~+60ºC

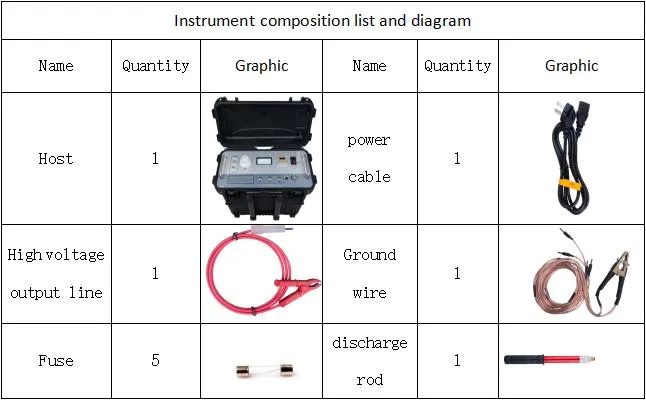

0-15kv High Voltage Pulse Generator with 900j Power 0
