Manufacturer Customizable 0-32kv Discharge 3000j Low and Cable Fault Locator Set

Name: Manufacturer Customizable 0-32kv Discharge 3000j Low and Cable Fault Locator Set
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-6Z
Price: 1,050.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	XZH Test
Certificação:	CE/ISO
Número do modelo:	XHHV535-6Z

Informações detalhadas

Lugar de origem:

CHINA

Marca:

XZH Test

Certificação:

CE/ISO

Número do modelo:

XHHV535-6Z

Destacar:

High Light

Destacar:

0-32kv discharge cable fault locator

3000j cable fault locator set

customizable cable fault locator

Trading Information

Quantidade de ordem mínima:

1Unit

Detalhes da embalagem:

Caixa de madeira

Tempo de entrega:

5-8 dias de trabalho

Termos de pagamento:

T/T.

Habilidade da fonte:

2000 unidade/ano

Descrição do produto

XHHV535-6Z

Model NO.

XHHV535-6Z

Usage

Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Test Region

Forming Cable

Cable Type

Shielded

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Output Voltage

0-35kv (40kv Can Be Customized)

Capacitance

4 Microfarad

Transport Package

Exported Wooden Case

Trademark

XZH TEST

Origin

China

Production Capacity

2000PCS/Year

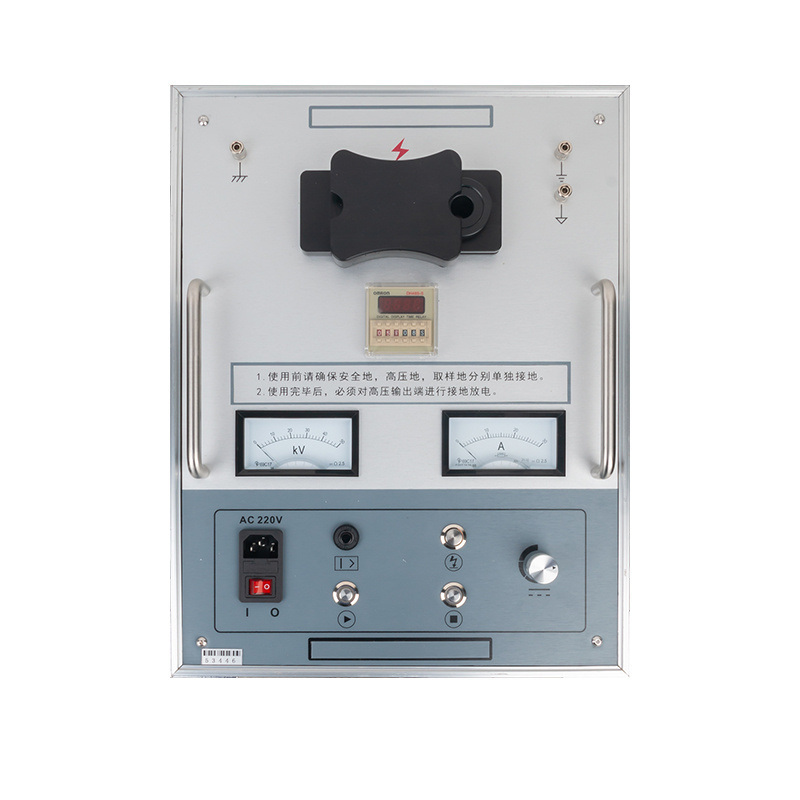

XHHV535-6Z high voltage surge generator integrates DC high voltage source, energy storage capacitor and discharge ball gap. More than 30 kg, pulse energy storage capacitor more than 20 kg).

The use of high-precision, high-stability special high-voltage electronic components and high-frequency high-voltage technology in the power supply ensures the simplicity of the entire machine structure and its ultra-light weight. Considering people's habit of using transformers and operation boxes for generating DC high voltage, this pulse generator is designed with a humanized operation mode. It is safe and reliable, and can truly withstand impacts without damage. It can also function properly even in the case of high voltage short - circuit - to - ground. It ranks as the lightest and most user-friendly portable DC shock high - voltage device available.

★ With over current, over voltage, overheating automatic protection function;
★ with DC voltage resistance, impact discharge function;
★ High voltage pulse output is uniform and controllable;
★ Strong short-circuit protection function, can make the high-voltage output directly to the ground short-circuit work;
★ With current, voltage double 2.5 level pointer table display, intuitive and clear, fault point is fully discharged at a glance, real-time reaction discharge process;
★ High voltage side voltage measurement, real-time accurate;
★ with zero start protection more safe and reliable;
★ Unique high voltage measurement design, in the stopped state, the voltmeter can indicate the capacitance voltage value in real time, so that the operator knows the high voltage;
★ Discharge time can be arbitrarily set within the appropriate interval.
Manufacturer Customizable 0-32kv Discharge 3000j Low and Cable Fault Locator Set 0

Impact high voltage	0-35kV(default 0-32kV)
High voltage partial pressure	Voltage Accuracy 2.5 grade
Built-in capacitor	6μF
Working power	AC 220V ± 10% 50Hz ± 2Hz(60Hz can be customized)
Discharge power	0-3072J(default 0-1568J)
Output voltage polarity	negative polarity
Impact power	400W
Overcurrent protection	16A(more than 3 seconds)
Overtemperature protection	65ºC
Ambient temperature	-20 ~ + 50 ºC
Impact time	1 ~ 10 seconds
Over temperature protection	85 ºC
Volume/size	430L × 345W × 545H(mm)
