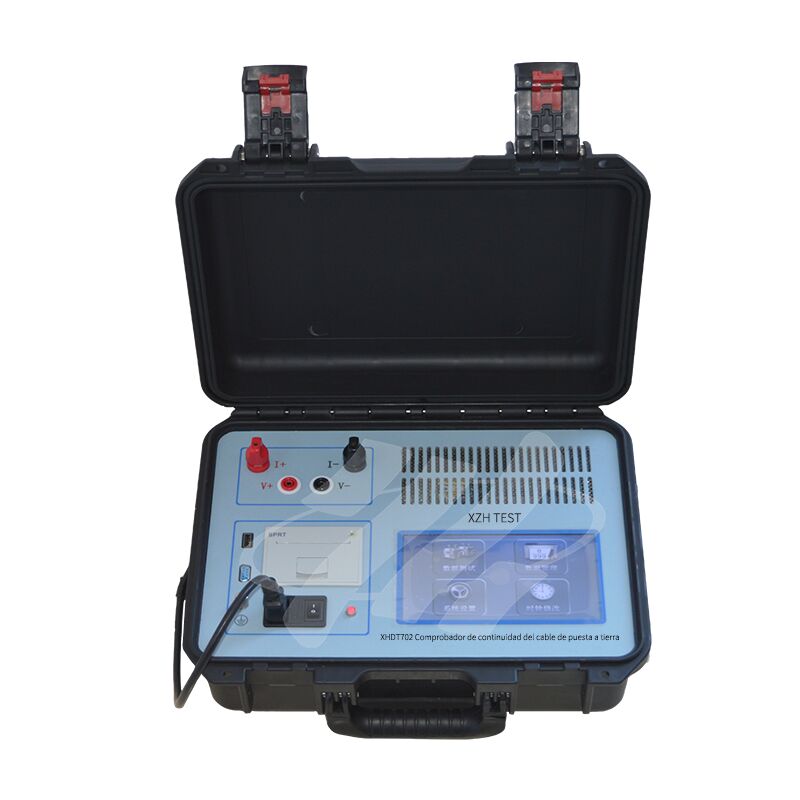

Grounding Lead Continuity Tester - Easy to Operate

Name: Grounding Lead Continuity Tester - Easy to Operate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702
Price: 440.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	Xi'an Shaanxi China
Marca:	XZH TEST
Certificação:	ISO CE
Número do modelo:	XHDT702

Informações detalhadas

Lugar de origem:

Xi'an Shaanxi China

Marca:

XZH TEST

Certificação:

ISO CE

Número do modelo:

XHDT702

Peso:

5kg

Destacar:

High Light

Destacar:

Easy to Operate Ground Tester

Grounding Lead Continuity Tester

Continuity Testing Ground Tester

Trading Information

Quantidade de ordem mínima:

1 CONJUNTO

Detalhes da embalagem:

embalagem de madeira

Tempo de entrega:

5-8 dias úteis

Termos de pagamento:

T/T

Habilidade da fonte:

3000 unidades/ano

Descrição do produto

Product Overview

The XHDT702 Grounding Downlead Continuity Tester is specifically designed for measuring the continuity resistance between the grounding downleads of power equipment in substations and the ground grid (or adjacent equipment). It is a professional testing instrument that meets the daily detection needs of power systems.

Performance Features

The entire machine is controlled by a high-speed single-chip microcomputer, featuring high automation and simple operation, which can effectively improve testing efficiency.

The instrument adopts advanced power supply technology, with multiple current gears and a wide measurement range, capable of adapting to different testing scenarios.

It is equipped with intelligent power management technology, which can effectively save power and extend the service life of the instrument.

It is equipped with a 320X240 dot-matrix 65K true-color LCD with ultra-small pixels, ensuring clear display even under strong light conditions.

The instrument has a built-in power-off storage function, which can store up to 1000 groups of test data for easy query at any time.

The instrument is equipped with a built-in lithium battery and a built-in charger, making it convenient to use anytime and anywhere without additional power supply.

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH
