Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Name: Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYB-10/100
Price: 7,970.00 USD
Availability: InStock

Detalhes do produto:

Lugar de origem:	Xi'an, Shaanxi, China
Marca:	XZH TEST
Certificação:	ISO,CE
Número do modelo:	XHYB-10/100

Informações detalhadas

Lugar de origem:

Xi'an, Shaanxi, China

Marca:

XZH TEST

Certificação:

ISO,CE

Número do modelo:

XHYB-10/100

Destacar:

High Light

Destacar:

Automatic tuning resonance tester

Series resonance apparatus with protection

AC DC hipot tester

Trading Information

Quantidade de ordem mínima:

1 unidade

Preço:

Negociável

Detalhes da embalagem:

embalagem de madeira

Tempo de entrega:

8 a 10 dias

Termos de pagamento:

T/T

Habilidade da fonte:

2000 unidades/ano

Descrição do produto

Product Overview

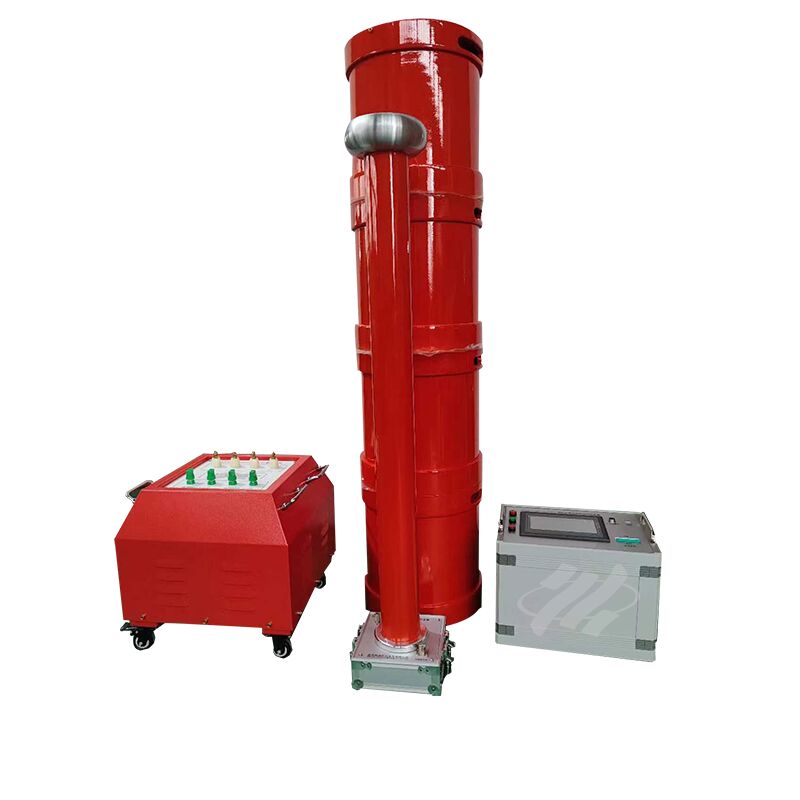

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights

Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
Low temperature rise during rated load operation, enhancing the service life of components.
Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
Multiple working modes available, realizing simple and efficient operation.
220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters

Rated Output Voltage: ≤500kV (AC RMS)
Output Frequency: 20～300Hz
Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
Test Capacity: ≤1000kVA
Continuous Working Time (Full Power): 60min
Quality Factor: 30～90
Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
Working Power Supply: 380/220V±15%/50Hz±5%
